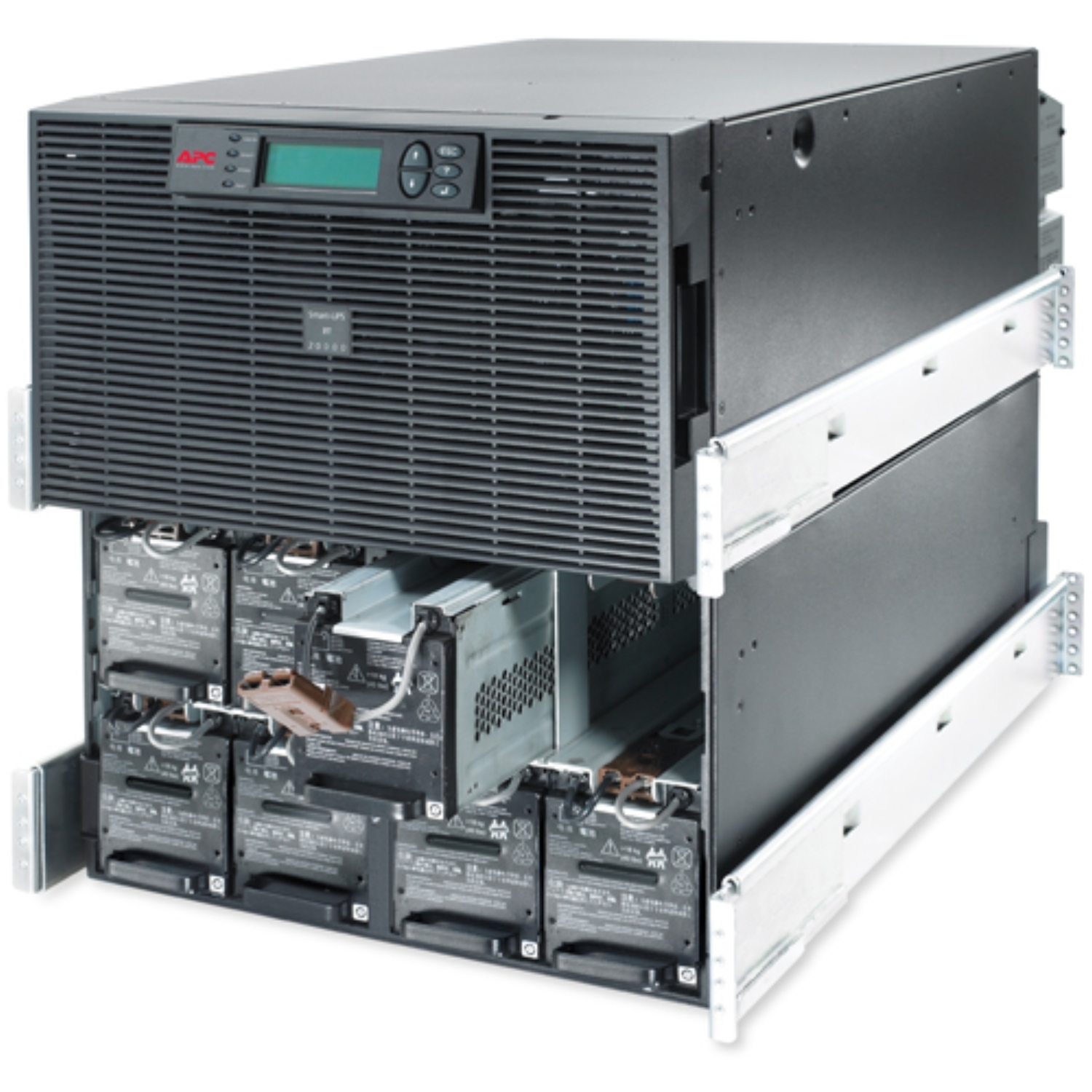

APC SURT20KRMXLI UPS 电源Smart-UPS RT 20kVA RM 230V Smart-UPS On-Line_SURT20KRMXLI.pdf-下载
UPS | SURT15KRMXLI | SURT20KRMXLI |
UPS VA | 15000 | 20000 |
Output | ||
Topology | Doubeconveson onne | |
Nominal output voltage | Congurabeor220:230:240:400 Vnominal output voltage | |
Efficiency at full load | Up to 92% | |
Output frequency(sync to mains) | 50/60 Hz +/-3 Hz user adjustable | |
Output power capaaity | 12kW | 16 kW |

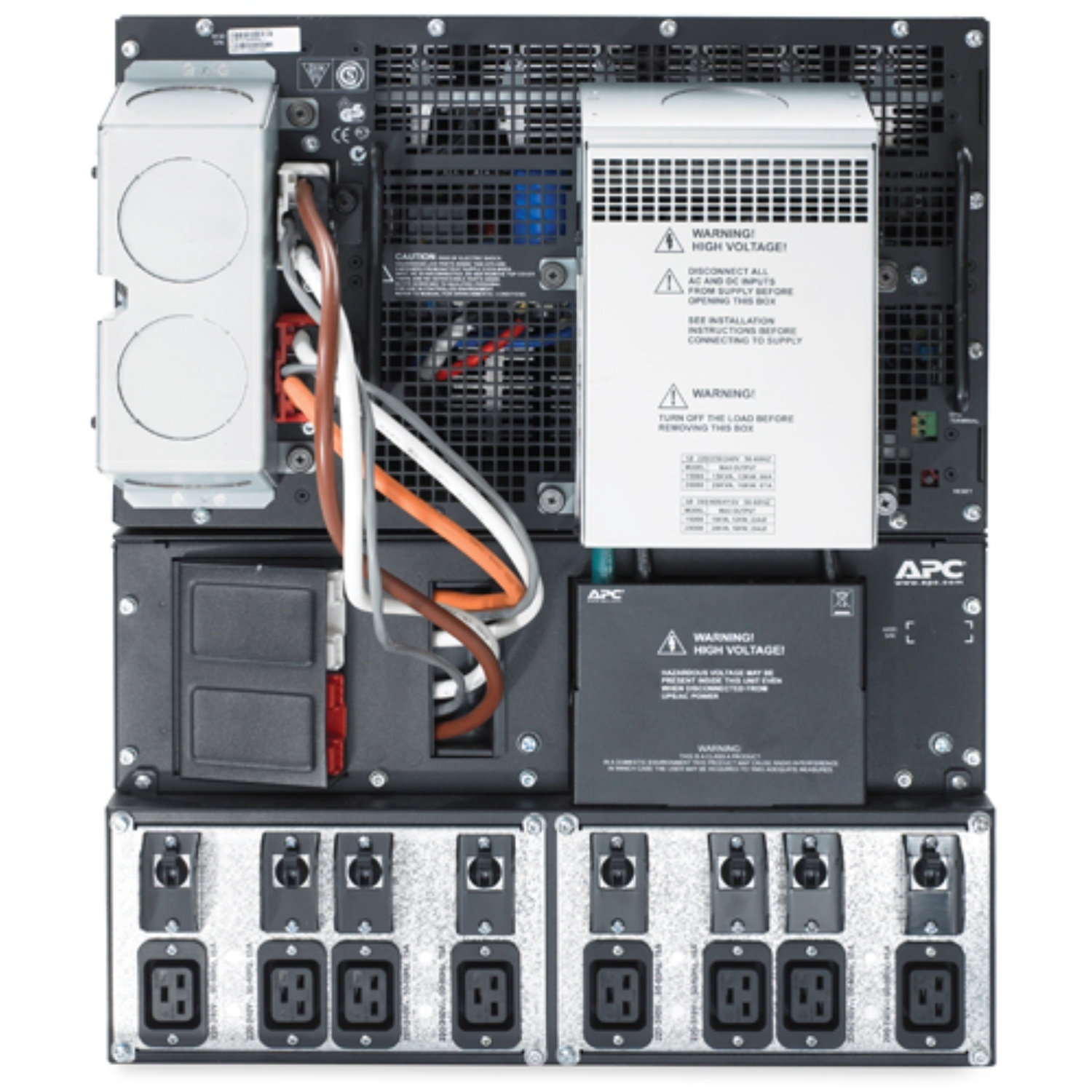

Output connections | (1Hadwe 3we(H+N+G);(1)Hardwire5-wire (3PH+N+ G);(8)IEC 320 C19 | |
Input | ||
Nominal input voltage | 230 V or 400 V | |
Input frequency | 45-65 Hz(auto sensing) | |
Input connections | Hardwire 3-wire(1PH+N+G); Hardwire 5-wire(3PH+N+G) | |
Bypass | Automatcand ManuaButn | |
Battery | ||
Battery type | Manenanceree seaedeadacdbaeywhsuspendedeecoye eakpoo | |
Replacement battery | APCRBC140 | |
Runtime | See Chart Below | |
Communications and Management | ||
Interface port(s) | RJ-4510/100 Base-T,RJ-45 Serial, SmartSlot | |
Pre-installed SmartSlot card | AP9631 | |
Emergency power off(EPO) | Yes | |
Control panel | LCD Display | |
Physical | ||
Radk height | 12U | |
Maximum height | 533 mm | |
Maximum width | 432 mm | |
Maximum depth | 773 mm | |
Net weight | 247.70kg |
